Powerful Data Validation Engine

library(tidyr)
library(dplyr, warn.conflicts = FALSE)
library(tibble)
library(glue)
library(ggplot2)
library(ksCompare)

Introduction

Data validation is a critical component of any data analysis pipeline. In this article, we’ll explore a powerful validation framework centered around the ks_check_rules() function from the ksCompare package. This function provides a flexible, declarative approach to validating data frames with comprehensive error reporting.

Function	Purpose
ks_check_rules	apply validation rules row-wise
ks_collapse_check_msgs	flatten list-column to character
ks_check_summary	programmatic overview + violation breakdown
ks_check_report_html	self-contained HTML check report
ks_compare_check_state	diff two validation runs (new / changed / unchanged)
ks_save2xlsx_by	split-by-group XLSX with conditional formatting

Overview

The ks_check_rules() function we introduced implements a flexible rule-based validation system for data frames. It enables specifying validation rules as a list of named rule objects, applying them against your data, and collecting results systematically.

Key Features

• Declarative rules: Define validation logic in a clean, reusable structure
• Two evaluation modes: "first" (stops at first failure) vs. "all" (checks all rules)
• Rich diagnostics: Per-row messages; collapse to a plain character column with ks_collapse_check_msgs()
• Programmatic summary: ks_check_summary() returns a tidy overview and violation-by-rule breakdown without writing any file
• Self-contained HTML report: ks_check_report_html() writes a single portable .html file — no Quarto, knitr, or internet access required
• Run-over-run comparison: ks_compare_check_state() tags rows as "new", "changed", or unchanged relative to a previous snapshot
• XLSX output with highlighting: ks_save2xlsx_by() splits results into one worksheet per group and applies conditional row colouring driven by the message column

Core Concepts

Rule Structure

Each rule is a list containing two required elements:

rule <- list(
  expr = ~ CONDITION_HERE,     # One-sided formula with logical expression
  msg = "Error message"        # Message for failing rows
)

Important: The expression should evaluate to TRUE for failing rows. While this may seem counter-intuitive at first, it follows the convention of defining “failure conditions” rather than “passing conditions.”

Data Structure

Your data frame can contain any mix of variable types. Rules will be applied row-wise.

Result Structure

The return value is your original data frame with an additional column called check_msgs, a list-column where each element contains:

• "OK" for rows that pass all validation rules
• In "first" mode: The first failing message (or "OK")
• In "all" mode: A character vector of all violated messages (or "OK")

Usage Examples

Complete Example

Example data:

# Sample data with intentional errors
adsl <- tibble(
  USUBJID = sprintf("01-%03d", 1:6),
  AGE = c(34, 52, -1, -3, 29, 70),
  SEX = c("M", "F", "M", NA, "F", "X"),
  WEIGHT = c(70, 80, 75, 500, 65, 68)
)

Validation rules

Best practice: Group related rules together and use descriptive names. While not mandatory, named rules improve code maintainability and make debugging easier:

# Define validation rules
rules <- list(
  # Rule 1: Age must be non-negative
  age_non_negative = list(
    expr = ~ AGE < 0,
    msg = "AGE must be non-negative"
  ),

  # Rule 2: SEX cannot be missing
  sex_not_missing = list(
    expr = ~ is.na(SEX),
    msg = "SEX is missing"
  ),

  # Rule 3: SEX must be M or F (ignoring missing)
  sex_valid = list(
    expr = ~ !is.na(SEX) & !(SEX %in% c("M", "F")),
    msg = "SEX must be M/F"
  ),

  # Rule 4: WEIGHT within reasonable range
  weight_range = list(
    expr = ~ WEIGHT > 300,
    msg = "WEIGHT out of range"
  )
)

Let’s extend our rules with some advanced expressions. We can use regular expressions easily:

rules <- append(rules, list(
  # --- Study Subject Identifier ---
  usubjid_format = list(
    expr = ~ !grepl("^\\d{2}-\\d{3}$", USUBJID),
    msg = "USUBJID must match format: XX-XXX-XXX"
  )
))

ks_check_rules(adsl, rules, mode = "all") |>
  ks_collapse_check_msgs(col = check_msgs)
#> # A tibble: 6 × 5
#>   USUBJID   AGE SEX   WEIGHT check_msgs
#>   <chr>   <dbl> <chr>  <dbl> <chr>
#> 1 01-001     34 M         70 OK
#> 2 01-002     52 F         80 OK
#> 3 01-003     -1 M         75 AGE must be non-negative
#> 4 01-004     -3 NA       500 AGE must be non-negative; SEX is missing; WEIGHT o…
#> 5 01-005     29 F         65 OK
#> 6 01-006     70 X         68 SEX must be M/F

Apply rules in first-failing mode:

result_first <- ks_check_rules(adsl, rules, mode = "first") |>
  ks_collapse_check_msgs(col = check_msgs)

result_first[, c("USUBJID", "check_msgs")]
#> # A tibble: 6 × 2
#>   USUBJID check_msgs
#>   <chr>   <chr>
#> 1 01-001  OK
#> 2 01-002  OK
#> 3 01-003  AGE must be non-negative
#> 4 01-004  AGE must be non-negative
#> 5 01-005  OK
#> 6 01-006  SEX must be M/F

Apply rules collecting all failures:

result_all <- ks_check_rules(adsl, rules, mode = "all") |>
  ks_collapse_check_msgs(col = check_msgs)

result_all[, c("USUBJID", "check_msgs")]
#> # A tibble: 6 × 2
#>   USUBJID check_msgs
#>   <chr>   <chr>
#> 1 01-001  OK
#> 2 01-002  OK
#> 3 01-003  AGE must be non-negative
#> 4 01-004  AGE must be non-negative; SEX is missing; WEIGHT out of range
#> 5 01-005  OK
#> 6 01-006  SEX must be M/F

Mode Comparison

Feature	First Mode	All Mode
Row processing	Stops at first failure	Checks all rules
Performance	Faster (shorter evaluation)	Slower (complete check)
Result detail	Minimalist (one message max)	Complete (all relevant messages)
Use case	General validation	Thorough validation

When to Use Which?

# Typical use cases

# Quick validation - stop at first issue found
quick_check <- ks_check_rules(adsl, rules, mode = "first")

quick_check
#> # A tibble: 6 × 5
#>   USUBJID   AGE SEX   WEIGHT check_msgs
#>   <chr>   <dbl> <chr>  <dbl> <list>
#> 1 01-001     34 M         70 <chr [1]>
#> 2 01-002     52 F         80 <chr [1]>
#> 3 01-003     -1 M         75 <chr [1]>
#> 4 01-004     -3 NA       500 <chr [1]>
#> 5 01-005     29 F         65 <chr [1]>
#> 6 01-006     70 X         68 <chr [1]>

# Comprehensive validation - get all issues for full validation
full_audit <- ks_check_rules(adsl, rules, mode = "all")

full_audit
#> # A tibble: 6 × 5
#>   USUBJID   AGE SEX   WEIGHT check_msgs
#>   <chr>   <dbl> <chr>  <dbl> <list>
#> 1 01-001     34 M         70 <chr [1]>
#> 2 01-002     52 F         80 <chr [1]>
#> 3 01-003     -1 M         75 <chr [1]>
#> 4 01-004     -3 NA       500 <chr [3]>
#> 5 01-005     29 F         65 <chr [1]>
#> 6 01-006     70 X         68 <chr [1]>

# Quality assurance check - ensure no errors exist
strict_validation <- function(data, rules) {

  result <- ks_check_rules(data, rules, mode = "all")

  valid <- purrr::map_lgl(result$check_msgs, ~ "OK" %in% .x)

  if (!all(valid)) {

    msgs <- unique(unlist(result$check_msgs[!valid]))

    stop(
      paste0(
        "Validation failed:\n",
        paste0(" - ", msgs, collapse = "\n")
      ),
      call. = FALSE
    )
  }

  invisible(result)
}

# Demonstrate the strict validation error handling
tryCatch(
  strict_validation(adsl, rules),
  error = function(e) {
    cat("Error caught as expected:\n")
    cat(conditionMessage(e), "\n")
  }
)
#> Error caught as expected:
#> Validation failed:
#>  - AGE must be non-negative
#>  - SEX is missing
#>  - WEIGHT out of range
#>  - SEX must be M/F

Performance Tips

1. Order matters in “first” mode: Place faster-to-evaluate rules first for performance gain
2. Group related columns: Organize rules by data columns for better organization
3. Use vectorized operations: Write expressions using vectorized functions

Error Message Design

Follow these guidelines for effective messages:

1. Be specific: Identify exactly what’s wrong
2. Suggest correction: Include acceptable formats when helpful
3. Reference standards: Mention relevant regulations or guidelines
4. Use consistent format: Maintain uniform wording conventions

GOOD: "Date format must be YYYY-MM-DD. Value: '01/01/2025' is invalid."

BAD:  "Invalid date"

Advanced Usage

# Using rlang expressions for dynamic rules
dynamic_age <- function(threshold_age) {
  list(
    age_threshold = list(
      expr = rlang::new_formula(
        lhs = NULL,
        rhs = rlang::expr(AGE < !!threshold_age)
      ),
      msg = sprintf(
        "Age must be at least %d years",
        threshold_age
      )
    )
  )
}

# Define rule
validation_age <- dynamic_age(18)

We can check our dynamic rules.

• Rule: validation_age$age_threshold$expr => ~AGE < 18.
• Message: validation_age$age_threshold$msg => Age must be at least 18 years.

You can also verify the expression evaluates correctly:

rlang::eval_tidy(
  rlang::f_rhs(validation_age$age_threshold$expr),
  data = adsl
)
#> [1] FALSE FALSE  TRUE  TRUE FALSE FALSE
# Expected:
# [1] FALSE FALSE TRUE TRUE FALSE FALSE

result <- ks_check_rules(adsl, validation_age)
result |> mutate(
    check_msgs = purrr::map_chr(check_msgs, ~ paste(.x, collapse = ", "))
  )
#> # A tibble: 6 × 5
#>   USUBJID   AGE SEX   WEIGHT check_msgs
#>   <chr>   <dbl> <chr>  <dbl> <chr>
#> 1 01-001     34 M         70 OK
#> 2 01-002     52 F         80 OK
#> 3 01-003     -1 M         75 Age must be at least 18 years
#> 4 01-004     -3 NA       500 Age must be at least 18 years
#> 5 01-005     29 F         65 OK
#> 6 01-006     70 X         68 OK

Categorizing Violations

You can post-process results to categorize violations:

classify_violations <- function(df) {
  df %>%
    mutate(
      violation_type = purrr::map_chr(
        check_msgs,
        ~ if ("OK" %in% .x) "clean" else "dirty"
      ),
      num_violations = purrr::map_int(
        check_msgs,
        ~ if ("OK" %in% .x) 0L else n_distinct(.x)
      )
    )
}

validation_result <- ks_check_rules(adsl, rules, mode = "all")

classified_data <- classify_violations(validation_result)

classified_data
#> # A tibble: 6 × 7
#>   USUBJID   AGE SEX   WEIGHT check_msgs violation_type num_violations
#>   <chr>   <dbl> <chr>  <dbl> <list>     <chr>                   <int>
#> 1 01-001     34 M         70 <chr [1]>  clean                       0
#> 2 01-002     52 F         80 <chr [1]>  clean                       0
#> 3 01-003     -1 M         75 <chr [1]>  dirty                       1
#> 4 01-004     -3 NA       500 <chr [3]>  dirty                       3
#> 5 01-005     29 F         65 <chr [1]>  clean                       0
#> 6 01-006     70 X         68 <chr [1]>  dirty                       1

Generating Summary Reports

ks_check_summary() returns a named list with two tibbles — overview (one-row totals) and violations (per-message counts and percentages) — without writing any file:

summary <- ks_check_summary(validation_result)

# Single-row KPI tibble
summary$overview
#> # A tibble: 1 × 4
#>   rows_total n_pass n_fail pass_rate
#>        <int>  <int>  <int>     <dbl>
#> 1          6      3      3       0.5

# Per-message breakdown (sorted by count descending)
summary$violations
#> # A tibble: 4 × 3
#>   message                  n_rows pct_rows
#>   <chr>                     <int>    <dbl>
#> 1 AGE must be non-negative      2    0.333
#> 2 SEX is missing                1    0.167
#> 3 SEX must be M/F               1    0.167
#> 4 WEIGHT out of range           1    0.167

For a quick console printout you can format the results yourself:

cat(sprintf(
  "Rows: %d | Passing: %d | Failing: %d | Pass rate: %.1f%%\n",
  summary$overview$rows_total,
  summary$overview$n_pass,
  summary$overview$n_fail,
  100 * summary$overview$pass_rate
))
#> Rows: 6 | Passing: 3 | Failing: 3 | Pass rate: 50.0%

HTML Check Report

ks_check_report_html() produces a single self-contained .html file using htmltools and reactable — no Quarto, no Pandoc. The report contains KPI cards, a searchable violation summary, and a row-detail table with status badges.

# Write to disk (auto-names file when path is NULL)
ks_check_report_html(
  validation_result,
  path = "check-report.html",
  title = "ADSL validation",
  subtitle = "Study XYZ — run 2026-07-13",
  theme = "default"   # or "slate"
)

# Return an in-memory htmltools tag list for embedding
report_tags <- ks_check_report_html(validation_result, path = NA)

The path argument follows the same three-way convention as ks_report_html(): NULL → auto-named file in the working directory, NA → in-memory tag list, or an explicit file path.

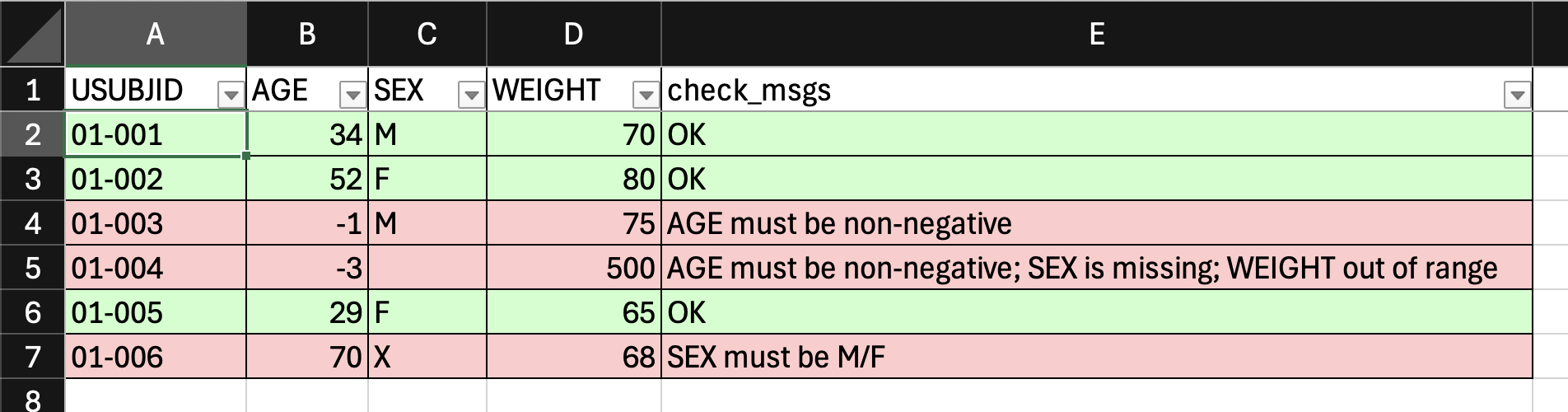

XLSX Export

ks_save2xlsx_by() writes one worksheet per unique value of a grouping column and applies Excel conditional formatting so rows are colour-highlighted based on the check_msgs content:

# Add a grouping column (e.g. by domain) and export
validation_result |>
  dplyr::mutate(domain = "ADSL") |>
  ks_collapse_check_msgs(col = check_msgs) |>   # XLSX needs a plain character column
  ks_save2xlsx_by(
    file   = "adsl_checks.xlsx",
    colors = c(
      "OK"              = "#CCFFCC",  # green
      "must be"         = "#FFCCCC",  # red  (substring match)
      "out of range"    = "#FFEEAA",  # amber
      "missing"         = "#FFD0D0"   # light red
    ),
    split_col = domain,
    msg_col   = check_msgs
  )

To layer a ks_compare_check_state() status column on top — so new and changed rows are highlighted differently — pass both status_col and status_colors:

validation_result |>
  ks_collapse_check_msgs(col = check_msgs) |>
  ks_compare_check_state(
    previous     = previous_run,
    key_cols     = "USUBJID",
    compare_cols = "check_msgs"
  ) |>
  dplyr::mutate(domain = "ADSL") |>
  ks_save2xlsx_by(
    file          = "adsl_checks_delta.xlsx",
    colors        = c("OK" = "#CCFFCC", "must be" = "#FFCCCC"),
    split_col     = domain,
    msg_col       = check_msgs,
    status_col    = status,
    status_colors = c("new" = "#D0E8FF", "changed" = "#FFF3CC")
  )

Tracking Changes Across Runs

ks_compare_check_state() compares the current validation result against a saved snapshot and adds a status column:

status	meaning
"new"	Subject key not present in the previous run
"changed"	Key exists but comparison signature differs
""	Row is identical to the previous run

# Simulate a "previous" run
previous_run <- ks_check_rules(adsl, rules, mode = "all") |>
  ks_collapse_check_msgs(col = check_msgs)

# Current run after data update
current_run <- adsl |>
  dplyr::mutate(AGE = replace(AGE, USUBJID == "01-003", 22L)) |>  # fix a negative age
  ks_check_rules(rules, mode = "all") |>
  ks_collapse_check_msgs(col = check_msgs)

# Compare the two runs
delta <- ks_compare_check_state(
  current     = current_run,
  previous    = previous_run,
  key_cols    = "USUBJID",
  compare_cols = "check_msgs"
)

delta[, c("USUBJID", "check_msgs", "status")]
#> # A tibble: 6 × 3
#>   USUBJID check_msgs                                                    status
#>   <chr>   <chr>                                                         <chr>
#> 1 01-001  OK                                                            ""
#> 2 01-002  OK                                                            ""
#> 3 01-003  OK                                                            "change…
#> 4 01-004  AGE must be non-negative; SEX is missing; WEIGHT out of range ""
#> 5 01-005  OK                                                            ""
#> 6 01-006  SEX must be M/F                                               ""

This is especially useful in iterative QC workflows where you want to confirm that only the intended rows changed between data cuts.

Visualizing Validation Results

There are several possibilities to visualize a validation:

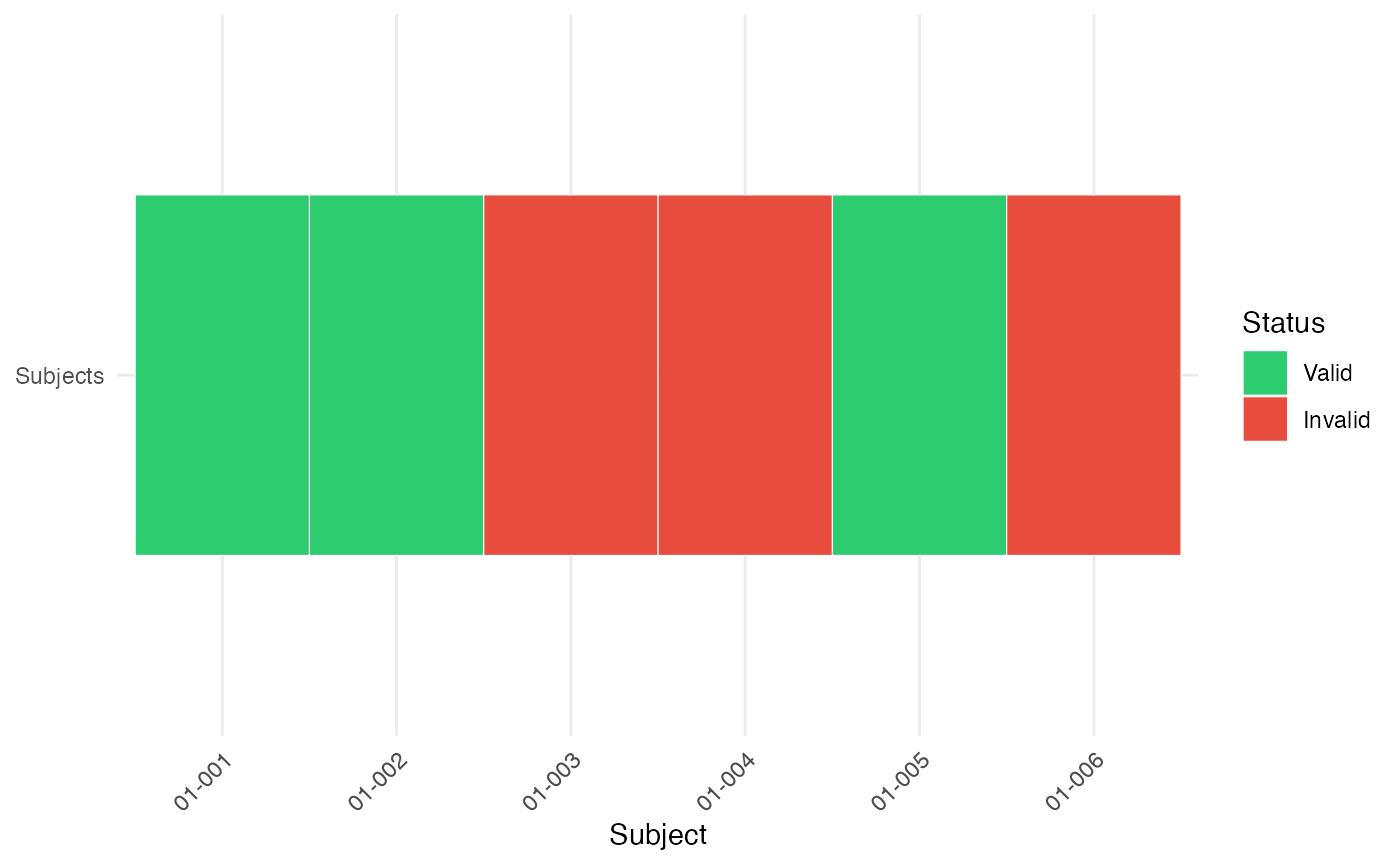

# For a single-row heatmap-like display, add a constant y value.
visualize_results1 <- function(df) {

  df <- df %>%
    mutate(
      status = factor(
        ifelse(
          purrr::map_lgl(check_msgs, ~ "OK" %in% .x),
          "Valid",
          "Invalid"
        ),
        levels = c("Valid", "Invalid")
      ),
      y = "Subjects"
    )

  ggplot(df, aes(x = USUBJID, y = y, fill = status)) +
    geom_tile(height = 0.6, color = "white") +
    scale_fill_manual(
      values = c(
        Valid = "#2ecc71",
        Invalid = "#e74c3c"
      )
    ) +
    labs(x = "Subject", y = NULL, fill = "Status") +
    theme_minimal() +
    theme(
      axis.text.x = element_text(angle = 45, hjust = 1)
    )
}

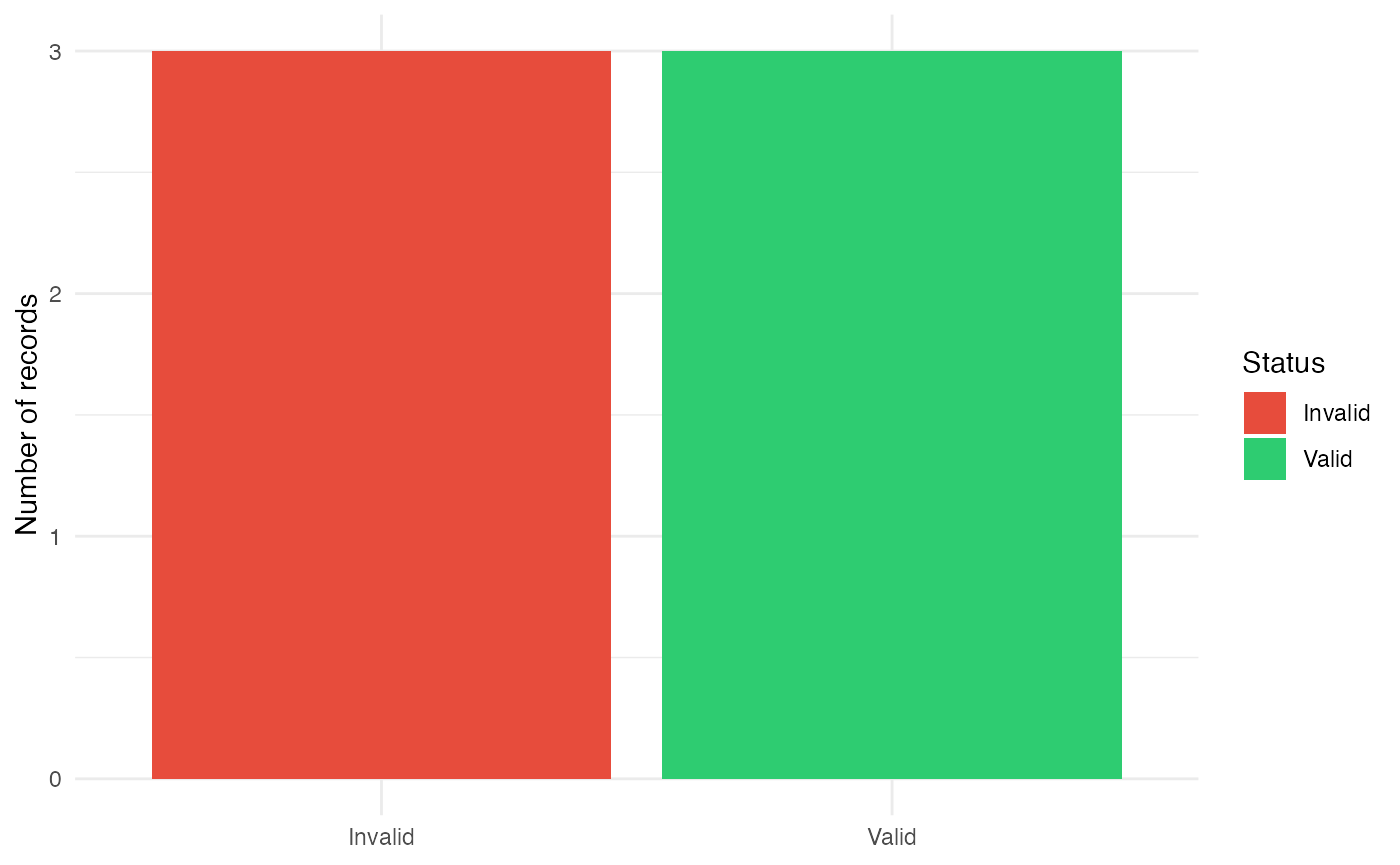

# Alternative: Bar chart (usually more informative)
visualize_results2 <- function(df) {

  df %>%
    mutate(
      status = ifelse(
        purrr::map_lgl(check_msgs, ~ "OK" %in% .x),
        "Valid",
        "Invalid"
      )
    ) %>%
    ggplot(aes(status, fill = status)) +
    geom_bar() +
    scale_fill_manual(
      values = c(
        Valid = "#2ecc71",
        Invalid = "#e74c3c"
      )
    ) +
    labs(
      x = NULL,
      y = "Number of records",
      fill = "Status"
    ) +
    theme_minimal()
}

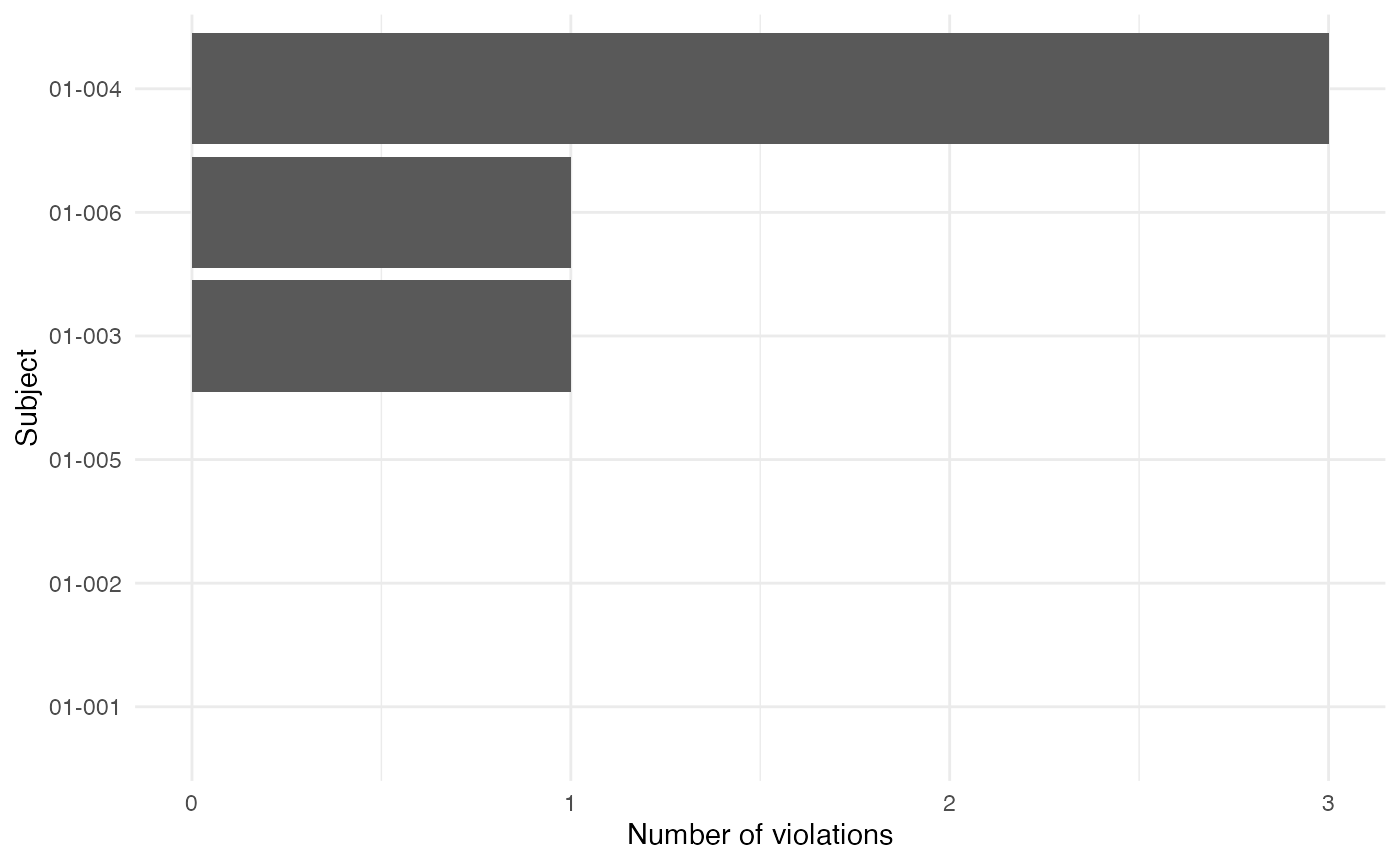

# Alternative: Show number of violations per subject
# If subjects can have multiple violations, this is often the most useful diagnostic plot:

visualize_results3 <- function(df) {

  df %>%
    mutate(
      n_violations = purrr::map_int(
        check_msgs,
        ~ if ("OK" %in% .x) 0L else length(.x)
      )
    ) %>%
    ggplot(aes(reorder(USUBJID, n_violations), n_violations)) +
    geom_col() +
    coord_flip() +
    labs(
      x = "Subject",
      y = "Number of violations"
    ) +
    theme_minimal()
}

# Example visualization
visualize_results1(validation_result)

visualize_results2(validation_result)

visualize_results3(validation_result)

For a data validation engine, the last plot tends to be the most actionable because it immediately highlights the worst offending records.

Common Patterns and Recipes

Range Checks

rules_range <- list(
  age_range = list(
    expr = ~ AGE < 18 | AGE > 120,
    msg = "Age must be between 18 and 120"
  ),
  weight_range = list(
    expr = ~ WEIGHT < 30 | WEIGHT > 250,
    msg = "Weight must be between 30 and 250 kg"
  )
)

Presence Checks

rules_presence <- list(
  id_not_missing = list(
    expr = ~ is.na(USUBJID),
    msg = "Subject ID cannot be missing"
  ),
  date_complete = list(
    expr = ~ is.na(ENR_DATE) | ENR_DATE == "",
    msg = "Enrollment date must be specified"
  )
)

Format Validation

rules_format <- list(
  date_format = list(
    expr = ~ !grepl("^\\d{4}-\\d{2}-\\d{2}$", ENR_DATE),
    msg = "Date must be in YYYY-MM-DD format"
  ),
  email_format = list(
    expr = ~ !grepl("^[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\\.[a-zA-Z]{2,6}$", EMAIL),
    msg = "Invalid email format"
  )
)

Conditional Checks

rules_conditional <- list(
  # If treatment is "Placebo", then dose must be zero
  placebo_zero_dose = list(
    expr = ~ TRTP == "Placebo" & DOSE != 0,
    msg = "Placebo must have zero dose"
  ),

  # If value is missing, flag specific column
  aval_not_missing = list(
    expr = ~ is.na(AVAL),
    msg = "AVAL cannot be missing"
  )
)

Reference Data Checks

# Predefined reference values
reference_values <- tibble(
  code = c("M", "F", "U"),
  description = c("Male", "Female", "Unknown")
)

rules_reference <- list(
  sex_known_values = list(
    expr = ~ !is.na(SEX) & !(SEX %in% reference_values$code),
    msg = glue("Invalid SEX code. Must be one of: {paste(reference_values$code, collapse = ", ")}")
  )
)

Group-Specific Validation

# Define group-specific rules
group_rules <- list(
  control_group = list(
    list(expr = ~ TRTP == "Placebo" & DOSE != 0,
         msg = "Control group must receive zero dose"),
    list(expr = ~ TRTP == "Placebo" & !is.na(TRTA),
         msg = "Control group TRTA should be empty")
  ),

  treatment_group = list(
    list(expr = ~ TRTP == "Drug A" & DOSE < 10,
         msg = "Treatment group requires dose ≥ 10"),
    list(expr = ~ TRTP == "Drug A" & DOSE > 200,
         msg = "Treatment group dose too high (>200)")
  ),

  # Default rules for all groups
  common_rules = list(
    list(expr = ~ is.na(USUBJID),
         msg = "Subject ID required for all subjects"),
    list(expr = ~ nchar(TRTP) < 1,
         msg = "Treatment name must be specified")
  )
)


# Apply group-specific validation
validation_result <- clinical_data |>
  mutate(group = case_when(
    TRTP == "Placebo" ~ "control",
    TRTP %in% c("Drug A", "Drug B") ~ "treatment",
    TRUE ~ "other"
  )) |>
  group_by(group) |>
  ks_check_rules(
    rules = group_rules[[cur_group()]],
    mode = "all"
  ) |>
  ungroup()

Best Practices

1. Modular Rule Definitions: Organize rules into logical groups (entity-specific, business-specific, technical)

2. Descriptive Error Messages: Include enough context to help data stewards understand and fix issues

3. Validation Layering: Apply rule sets in logical sequences (format checks → range checks → business rules)

4. Performance Considerations:

   • Order performance-intensive rules first
   • Use “first” mode for critical validation paths
   • Consider caching rule compilation results

5. Documentation: Every rule should have clear documentation explaining:

   • What the rule checks
   • Why it matters
   • Expected data patterns

6. Configuration Management: Store rule parameters externally whenever possible for easier maintenance

7. Graceful Degradation: Allow partial validation when complete rule sets aren’t available

8. Integration Testing: Always validate with realistic test data that includes boundary cases

Conclusion

The ks_check_rules() framework represents a robust and flexible approach to data validation. By providing granular control over validation rules, performance-optimized execution, and clear error reporting, it enables data teams to build reliable validation pipelines.

Key Benefits

Modular Architecture

• Rules are decoupled from business logic
• Easy to extend and maintain
• Supports dynamic rule configuration
• Early-exit “first” mode for critical validation

Seamless tidyverse Integration

• Supports custom rule definitions
• Integrates naturally with data processing pipelines
• Works with standard tidyverse verbs (mutate(), filter(), etc.)

What’s Available Now

Function	What it does
ks_check_rules()	Apply validation rules row-wise (modes: "first" / "all")
ks_collapse_check_msgs()	Flatten list-column to plain character
ks_check_summary()	Programmatic overview + per-message violation breakdown
ks_check_report_html()	Self-contained HTML report (htmltools + reactable)
ks_compare_check_state()	Diff two runs — tag rows as new / changed / unchanged
ks_save2xlsx_by()	Split-by-group XLSX with conditional row colouring

Future Roadmap

• Rule metadata annotations (severity levels, regulation references)
• Cross-dataset relational checks (e.g. validate ADAE against ADSL keys)
• Performance optimizations for datasets > 1 M rows

Final Thoughts

This validation framework represents more than just error checking—it’s a strategic data governance mechanism. By investing in thoughtful validation patterns today, organizations can prevent downstream data issues, improve data quality, and reduce long-term maintenance costs.

The modular design allows for incremental adoption: start with basic schema validation, then progressively add business rules, cross-field checks, and custom validation patterns. With comprehensive documentation and practical examples, ks_check_rules aims to become an essential tool for serious data practitioners.
